ACPL-K64L-500E

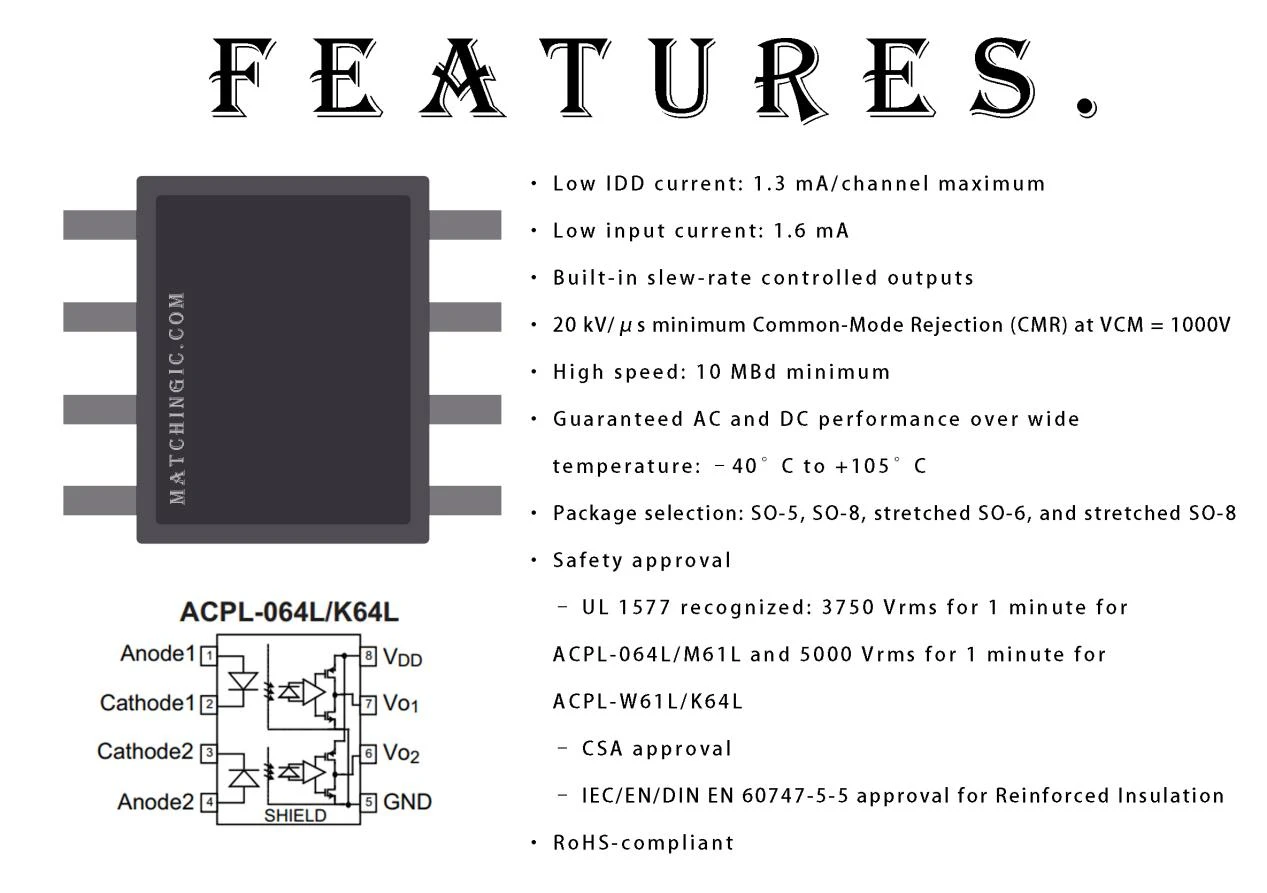

The ACPL-K64L-500E optocoupler emerges as a highly efficient solution, featuring low power consumption with a maximum IDD current of 1.3 mA per channel and low input current of 1.6 mA. Designed for high-speed data transmission at a minimum of 10 MBd, it ensures rapid and reliable communication. The device's temperature resilience spans from -40°C to +105°C, guaranteeing stable performance across diverse environmental conditions. Equipped with built-in slew-rate controlled outputs and a 20 kV/µs minimum Common-Mode Rejection (CMR) at VCM = 1000V, it enhances signal integrity and noise rejection. The optocoupler offers package flexibility with options such as SO-5, SO-8, stretched SO-6, and stretched SO-8, catering to specific application needs. Additionally, it holds safety certifications, including UL 1577 recognition, CSA approval, and compliance with IEC/EN/DIN EN 60747-5-5 standards for Reinforced Insulation, ensuring a reliable and secure component. Furthermore, its RoHS compliance aligns with environmental regulations. Overall, the ACPL-K64L-500E stands out as a versatile and dependable solution for diverse electronic systems.

·Communication interfaces: RS485, CANBus, and I2C

·Microprocessor system interfaces

·Digital isolation for A/D and D/A converters

The Broadcom® low-power ACPL-x6xL digital optocouplers combine an AlGaAs light emitting diode (LED) and an integrated high gain photodetector. The optocoupler consumes low power, at maximum 1.3 mA IDD current per channel across temperature. With a forward LED current as low as 1.6 mA, most microprocessors can directly drive the LED. An internal Faraday shield provides a guaranteed commonmode transient immunity specification of 20 kV/µs. Maximum AC and DC circuit isolation is achieved while maintaining TTL/CMOS compatibility. The optocouplers' CMOS outputs are slew-rate controlled and designed to allow the rise and fall time to be controlled over a wide load-capacitance range. The ACPL-x6xL series operates from both 3.3V and 5V supply voltages with guaranteed AC and DC performance from –40°C to +105°C. These low-power optocouplers are suitable for high-speed logic interface applications.

It is advised that normal static precautions be taken in handling and assembly of this component to prevent damage and/or degradation which may be induced by ESD. The components featured in this data sheet are not to be used in military or aerospace applications or environments.
