ACPL-J313-500E
Description
Technical Parameters

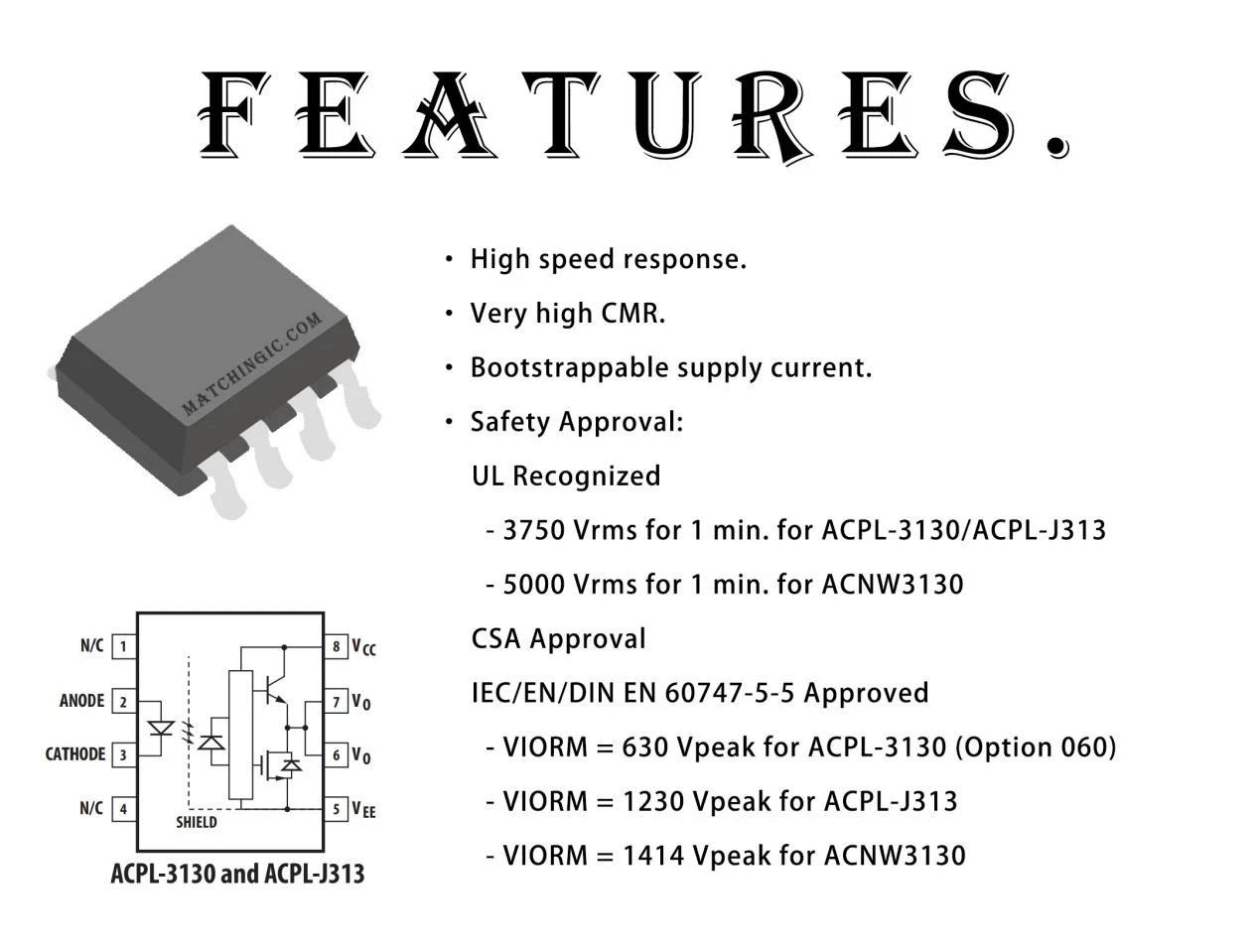

ACPL-J313-500E Optocoupler Gate Driver This device features high-speed response, extremely high common-mode rejection (CMR), and bootstraptable supply current to ensure efficient and adaptable operation. Its safety certifications, including UL certification and CSA certification, demonstrate compliance with stringent standards and provide isolation up to 5000 Vrms. Specifications such as 2.5A maximum peak output current, 0.5V low-level output voltage and under-voltage lockout protection help improve its stability and reliability. The ACPL-J313-500E operates over a wide VCC range, provides fast switching speeds, and is designed for the industrial temperature range of -40°C to 100°C, making it a versatile and reliable choice for optocoupler gate drivers .
Related Products:
|
Mfr Part |
ACPL-J313-000E |
ACPL-J313-300E |
ACPL-J313-500E |
|
Description |
OPTOISO IGBT MOSFET DRIVER |
OPTOISO IGBT MOSFET DRIVER |
OPTOISO IGBT MOSFET DRIVER |
|
Stock |
50000 |
50000 |
50000 |
|
Product Status |
Active |
Active |
Active |
|
Technology |
Optical Coupling |
Optical Coupling |
Optical Coupling |
|
Number of Channels |
1 |
1 |
1 |
|
Voltage - Isolation |
3750Vrms |
3750Vrms |
3750Vrms |
|
Common Mode Transient Immunity (Min) |
40kV/us |
40kV/us |
40kV/us |
|
Propagation Delay tpLH / tpHL (Max) |
500ns, 500ns |
500ns, 500ns |
500ns, 500ns |
|
Pulse Width Distortion (Max) |
300ns |
300ns |
300ns |
|
Current - Output High, Low |
2A,2A |
2A,2A |
2A,2A |
|
Current - Peak Output |
2A |
2A |
2A |
|
Voltage - Forward (Vf) (Typ) |
1.6V |
1.6V |
1.6V |
|
Current - DC Forward (If) (Max) |
25 mA |
25 mA |
25 mA |
|
Voltage - Output Supply |
15V ~ 30V |
15V ~ 30V |
15V ~ 30V |
|
Operating Temperature |
-40～C ~ 100～C |
-40～C ~ 100～C |
-40～C ~ 100～C |
|
Package / Case |
DIP8(7.62mm) |
SMD8(7.62mm) |
SMD8(7.62mm) |
|
Package |
Tube |
Tape & Reel (TR) |
Tape & Reel (TR) |
Applications:
• IGBT/MOSFET gate drive
• AC/Brushless DC motor drives
• Industrial inverters
• Switching Power Supplies (SPS)
Description:
The ACPL-3130 contains a GaAsP LED while the ACPL-J313 and the ANCW3130 contain an AlGaAs LED. The LED is optically coupled to an integrated circuit with a power output stage. These optocouplers are ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications. The high operating voltage range of the output stage provides the drive voltages required by gate controlled devices. The voltage and current supplied by these optocouplers make them ideally suited for directly driving IGBTs with ratings up to 1200 V/100 A. For IGBTs with higher ratings, the ACPL-3130 series can be used to drive a discrete power stage which drives the IGBT gate. The ANCW3130 has the highest insulation voltage of VIORM = 1414 Vpeak in the IEC/EN/DIN EN 60747-5-5. The ACPL-J313 has an insulation voltage of VIORM = 1230 Vpeak and the VIORM = 630 Vpeak is also available with the ACPL3130 (Option 060).
CAUTION:
It is advised that normal static precautions be taken in handling and assembly of this component to prevent damage and/or degradation which may be induced by ESD.
