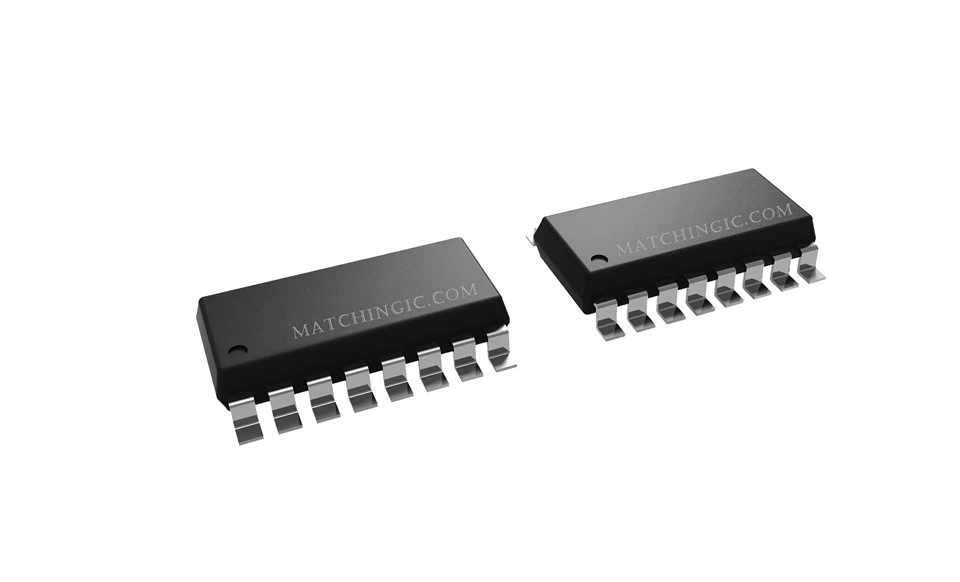

SI8237BC-D-IS1R

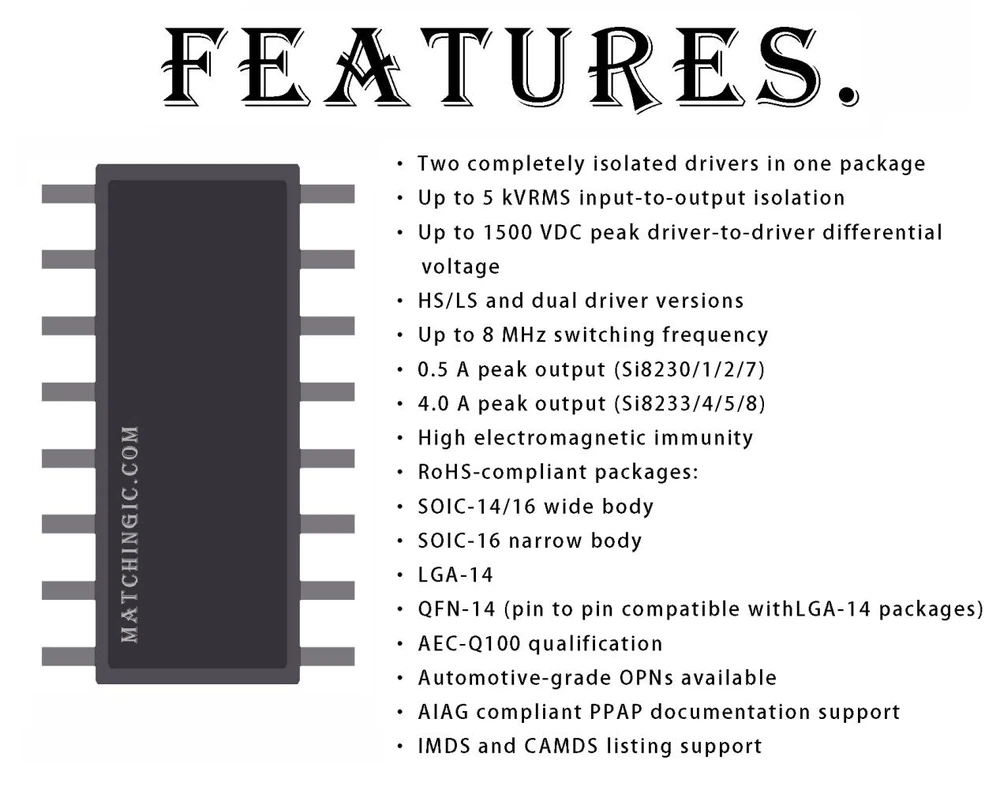

The SI8237BC-D-IS1R provides a game-changing solution for isolated gate driver needs. This innovative device contains two fully isolated drivers in a single package, providing up to 5 kVRMS input-to-output isolation and supporting peak inter-driver differential voltages up to 1500 VDC. The SI8237BC-D-IS1R is available in HS/LS and dual-driver versions with a choice of switching frequency up to 8 MHz and peak output of 0.5 A or 4.0 A. Its high electromagnetic immunity ensures reliability and it meets various RoHS standards - a compliant package. Additionally, it is AEC-Q100 automotive qualified and offers AIAG-compliant PPAP documentation support, as well as IMDS and CAMDS listing support. This gate driver is a versatile and powerful solution that sets new standards in gate driver technology, making it ideal for a variety of applications including automotive and beyond.

• Power delivery systems

• Motor control systems

• Isolated dc-dc power supplies

• Lighting control systems

• Plasma displays

• Solar and industrial inverters

• On-board chargers

• Battery management systems

• Charging stations

• Traction inverters

• Hybrid Electric Vehicles

• Battery Electric Vehicles

The Si823x isolated driver family combines two independent, isolated drivers into a single package. The Si8230/1/3/4 are high-side/low-side drivers, while the Si8232/5/7/8 are dual drivers. Versions with peak output currents of 0.5 A (Si8230/1/2/7) and 4.0 A (Si8233/4/5/8) are available. All drivers operate with a maximum supply voltage of 24 V.

The Si823x drivers utilize Skyworks' proprietary silicon isolation technology, which provides up to 5 kVRMS withstand voltage per UL1577 and fast 45 ns propagation times. Driver outputs can be grounded to the same or separate grounds or connected to a positive or negative voltage. The TTL level compatible inputs with >400 mV hysteresis are available in individual control input (Si8230/2/3/5/7/8) or PWM input (Si8231/4) configurations. High integration, low propagation delay, small installed size, flexibility, and cost-effectiveness make the Si823x family ideal for a wide range of isolated MOSFET/IGBT gate drive applications.

Automotive Grade is available for certain part numbers. These products are built using automotive-specific flows at all steps in the manufacturing process to ensure the robustness and low defectivity required for automotive applications.
