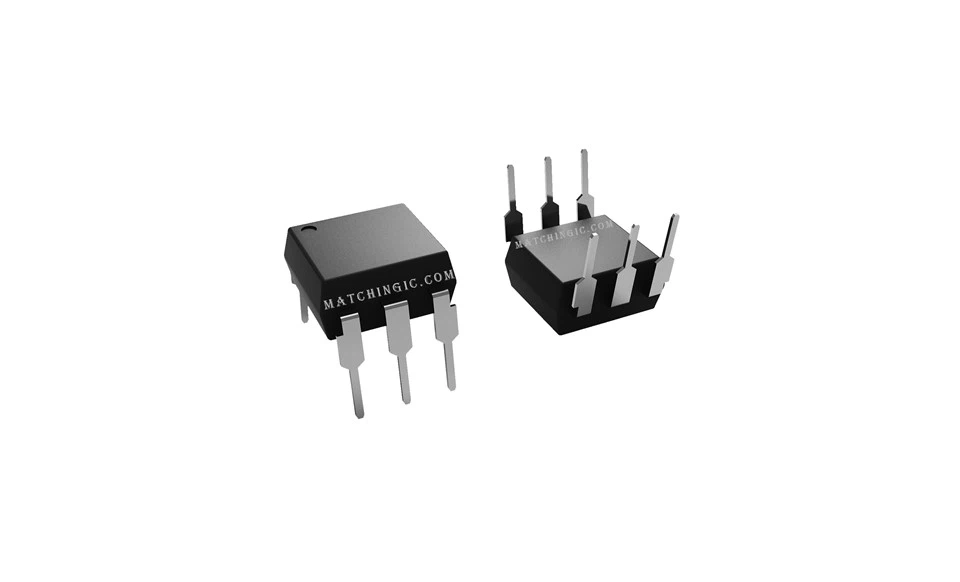

VOT8123AD NZC, 800V, DIP6, 6PIN OPTOTRIAC/OPTOCPLR PHOTOTRIAC 800V DIP6 GW
Description
Technical Parameters
Related Products:
|
Mfr Part |
VOT8123AD |
VOT8123AG-V |
|
Stock |
50000 |
50000 |
|
Product Status |
Active |
Active |
|
Output Type |
Triac NZR |
Triac NZR |
|
Zero Crossing Circuit |
No |
No |
|
Number of Channels |
1 |
1 |
|
Voltage - Isolation |
5000Vrms |
5000Vrms |
|
Voltage - Off State |
800 V |
800 V |
|
Static dV/dt (Min) |
1kV/us |
1kV/us |
|
Current - LED Trigger (Ift) (Max) |
10mA |
10mA |
|
Current - On State (It (RMS)) (Max) |
100 mA |
100 mA |
|
Current - Hold (Ih) |
400uA (Typ) |
400uA (Typ) |
|
Turn On Time |
- |
- |
|
Voltage - Forward (Vf) (Typ) |
1.2V |
1.2V |
|
Current - DC Forward (If) (Max) |
50 mA |
50 mA |
|
Operating Temperature |
-40～C ~ 110～C |
-40～C ~ 110～C |
|
Package / Case |
DIP6(7.62mm) |
DIP6(7.62mm) |
Applications:
• Power TRIAC driver in solid-state relays
• 3-phase AC equipment
• Motor control
• Industrial control
• White goods / household equipment
General Description：
The VOT8123A consists of a GaAs IRLED optically coupled to a photosensitive TRIAC packaged in a DIP-6 package.
The VOT8123A isolates low-voltage logic from 120 VAC, 240 VAC, and 380 VAC lines to control resistive, inductive, or capacitive loads including motors, solenoids, high current thyristors or TRIAC and relays.
