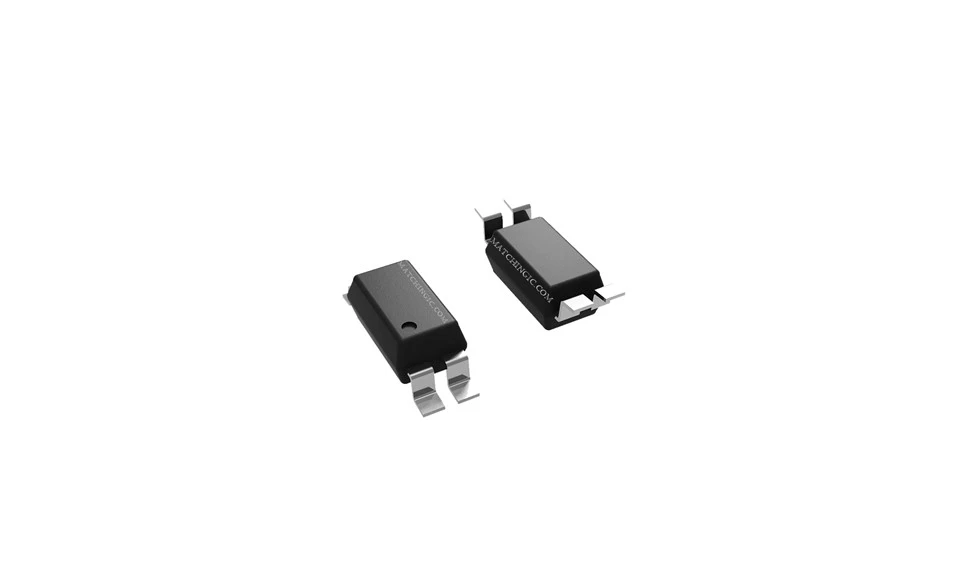

TCMT1101
Description
Technical Parameters
Related Products:
|
Mfr Part |
TCMT1101 |
|
Description |
OPTOCOUPLER, PHOTOTRANSISTOR OUT |
|
Stock |
80000 |
|
Product Status |
Active |
|
Voltage - Isolation |
3750Vrms |
|
Current Transfer Ratio (Min) |
50% @ 10mA |
|
Current Transfer Ratio (Max) |
600% @ 10mA |
|
Turn On / Turn Off Time (Typ) |
5us, 5us |
|
Input Type |
DC |
|
Output Type |
Transistor DC |
|
Voltage - Output (Max) |
80V |
|
Current - Output / Channel |
50mA |
|
Voltage - Forward (Vf) (Typ) |
1.2V |
|
Current - DC Forward (If) (Max) |
50 mA |
|
Operating Temperature |
-55～C ~ 110～C |
|
Package / Case |
SSOP4(4.4x1.27) |
|
Package |
Tape & Reel (TR) |
Applications:
• Programmable logic controllers
• Modems
• Answering machines
• General applications
General Description：
The TCMT110. series consist of a phototransistor optically coupled to a gallium arsenide infrared-emitting diode in a 4 pin package.
The elements are mounted on one leadframe providing a fixed distance between input and output for highest safety requirements.
