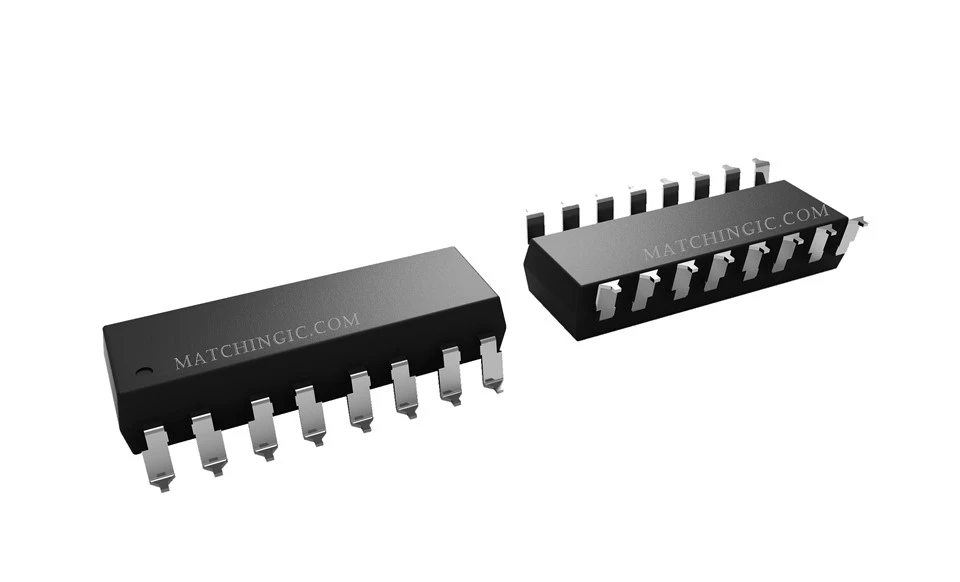

SDT1600-S-TR
Description
Technical Parameters
Related Products:
|
Mfr Part |
SDT1600-H-S |
SDT1600-H-S-TR |
SDT1600-S |
SDT1600-S-TR |
|
Description |
OPTOCOUPLER, PHOTOTRANSISTOR OUT |
OPTOCOUPLER, PHOTOTRANSISTOR OUT |
OPTOCOUPLER, PHOTOTRANSISTOR OUT |
OPTOCOUPLER, PHOTOTRANSISTOR OUT |
|
Stock |
80000 |
80000 |
80000 |
80000 |
|
Product Status |
Active |
Active |
Active |
Active |
|
Voltage - Isolation |
3750Vrms |
3750Vrms |
3750Vrms |
3750Vrms |
|
Current Transfer Ratio (Min) |
50% @ 5mA |
50% @ 5mA |
50% @ 5mA |
50% @ 5mA |
|
Current Transfer Ratio (Max) |
600% @ 5mA |
600% @ 5mA |
600% @ 5mA |
600% @ 5mA |
|
Turn On / Turn Off Time (Typ) |
|
|||
|
Input Type |
DC |
DC |
DC |
DC |
|
Output Type |
Transistor DC |
Transistor DC |
Transistor DC |
Transistor DC |
|
Voltage - Output (Max) |
70V |
70V |
70V |
70V |
|
Current - Output / Channel |
50mA |
50mA |
50mA |
50mA |
|
Voltage - Forward (Vf) (Typ) |
1.2V |
1.2V |
1.2V |
1.2V |
|
Current - DC Forward (If) (Max) |
50 mA |
50 mA |
50 mA |
50 mA |
|
Operating Temperature |
-30～C ~ 100～C |
-55～C ~ 110～C |
-55～C ~ 110～C |
-55～C ~ 110～C |
|
Package / Case |
SMD16(7.62mm) |
SMD16(7.62mm) |
SMD16(7.62mm) |
SMD16(7.62mm) |
|
Package |
Tape & Reel (TR) |
Tape & Reel (TR) |
Tape & Reel (TR) |
Tape & Reel (TR) |
Applications:
• Loop current detection
• Ring signal detection, Computer terminals, Programmable controls.
• Power supply feedback isolation, Laser beam printer.
• Audio signal interface, System appliances, measuring instruments.
• Transformer replacement, registers, copiers etc.
General Description：
The SDT1600 combines four independent optocouplers in a 16 pin DIP/SMD package. Each of the four optocoupler circuits is composed of an input LED optically-coupled to a Phototransistor--allowing for high isolation levels while maintaining low-level DC signal control capability. The SDT1600 provides an optically isolated method of controlling many interface applications such as telecommunications, industrial control and instrumentation circuitry.
