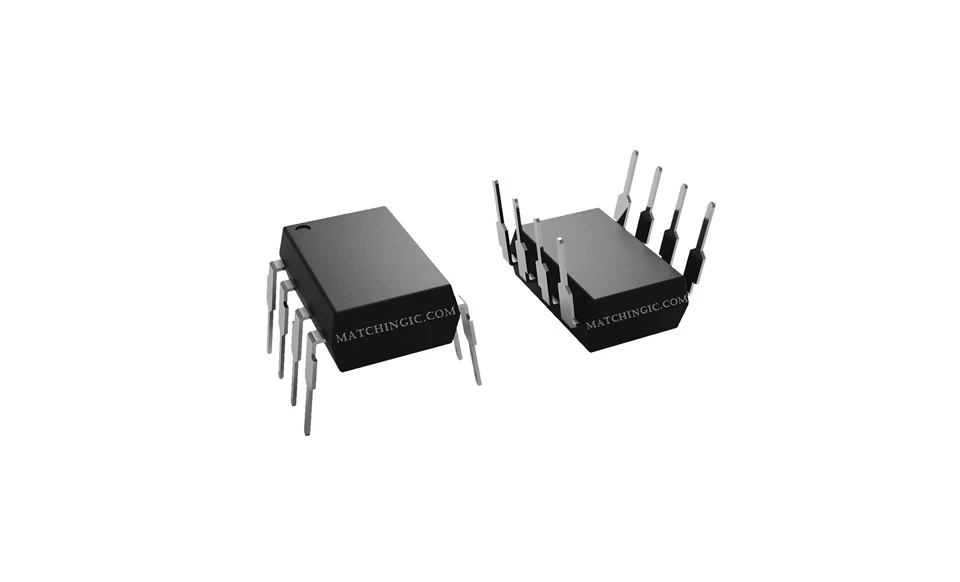

KP3020
Description
Technical Parameters
Related Products:
|
Mfr Part |
KP3020 |
KP30201A |
KP30201B |
KP30201E |
|
Description |
OPTOCOUPLER, PHOTOTRANSISTOR OUT |
OPTOCOUPLER, PHOTOTRANSISTOR OUT |
OPTOCOUPLER, PHOTOTRANSISTOR OUT |
OPTOCOUPLER, PHOTOTRANSISTOR OUT |
|
Stock |
80000 |
80000 |
80000 |
80000 |
|
Product Status |
Active |
Active |
Active |
Active |
|
Voltage - Isolation |
5000Vrms |
5000Vrms |
5000Vrms |
5000Vrms |
|
Current Transfer Ratio (Min) |
50% @ 5mA |
50% @ 5mA |
50% @ 5mA |
50% @ 5mA |
|
Current Transfer Ratio (Max) |
600% @ 5mA |
600% @ 5mA |
600% @ 5mA |
600% @ 5mA |
|
Turn On / Turn Off Time (Typ) |
- |
- |
- |
- |
|
Input Type |
AC, DC |
AC, DC |
AC, DC |
AC, DC |
|
Output Type |
Transistor AC/DC |
Transistor AC/DC |
Transistor AC/DC |
Transistor AC/DC |
|
Voltage - Output (Max) |
70V |
70V |
70V |
70V |
|
Current - Output / Channel |
50mA |
50mA |
50mA |
50mA |
|
Voltage - Forward (Vf) (Typ) |
1.2V |
1.2V |
1.2V |
1.2V |
|
Current - DC Forward (If) (Max) |
50 mA |
50 mA |
50 mA |
50 mA |
|
Operating Temperature |
-30～C ~ 100～C |
-30～C ~ 100～C |
-30～C ~ 100～C |
-30～C ~ 100～C |
|
Package / Case |
DIP8(7.62mm) |
DIP8(7.62mm) |
DIP8(7.62mm) |
DIP8(7.62mm) |
|
Package |
Tube |
Tube |
Tube |
Tube |
Applications:
• System appliances
• Limit Switches
• Sensors
• Programmable controllers applications for Low Input Photocouplers and High Vceo Photocouplers
• Telephone sets
• Telephone exchangers
• Thermostats
• Signal transmission between circuits of different potentials and impedances
General Description：
The KP3020 series consist of two infrared emitting diodes, connected in inverse parallel, optically coupled to a phototransistor detector. They are packaged in an 8-pin DIP package and available in wide-lead spacing and SMD option.
