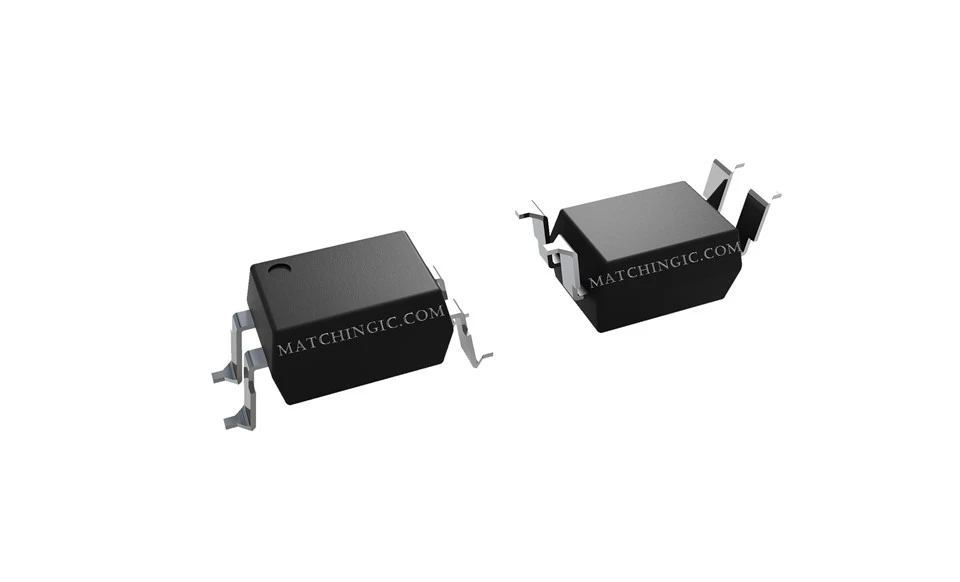

TLP3555A(TP1,F
Description
Technical Parameters
Related Products:
|
Mfr Part |
TLP3555A(TP1,F |
|
Description |
SSR RELAY SPST-NO 3A 0-60V |
|
Stock |
44000 |
|
Product Status |
Active |
|
Voltage - Isolation |
3750Vrms |
|
Circuit |
SPST-NO (1 Form A) |
|
Output Type |
AC, DC |
|
Voltage - Load |
0 V ~ 60 V |
|
Load Current |
3.0A |
|
On-State Resistance (Max) |
0.1 Ohms |
|
Voltage - Input |
1.64VDC |
|
Package / Case |
SMD4(7.62mm) |
|
Package |
Tape & Reel (TR) |
Applications:
• Heating, ventilation and air conditioning (HVAC)
• Mechanical relay replacements
• ATE (Automatic Test Equipment)
• Factory Automation (FA)
• Security Systems
General Description：
The TLP3555A and TLP3555AF photorelay consist of a photo MOSFET optically coupled to an infrared LED. It is housed in a 4-pin DIP package. The low ON-state resistance and the high permissible ON-state current of the TLP3555A and TLP3555AF make it suitable for power line control applications.
