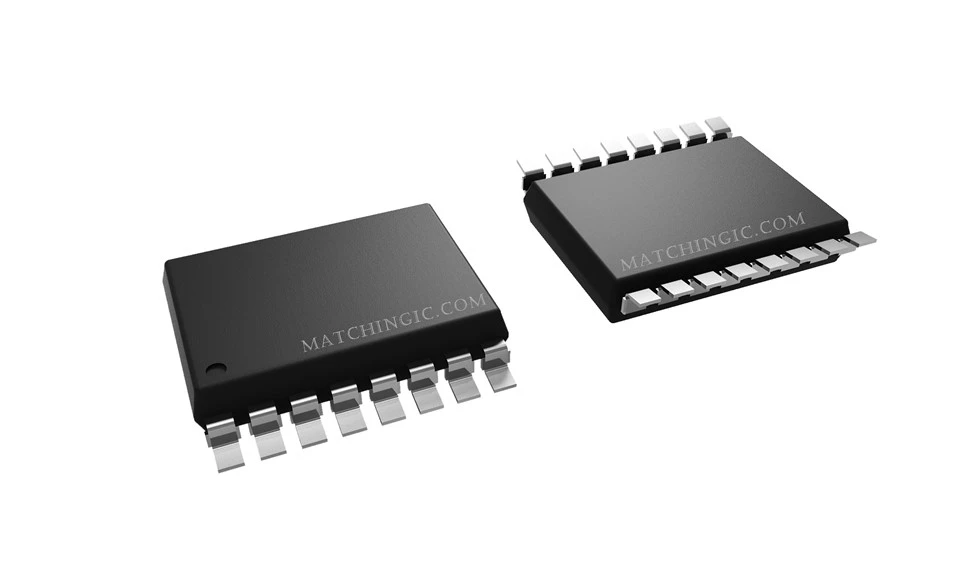

TLP5212(TP,E

The TLP5212 is a high-performance gate driver for optocouplers, excelling in terms of peak output current, temperature range, power supply voltage, and various other critical parameters.

Send Inquiry

Add To Inquiry

Description

Technical Parameters

The TLP5212 optocoupler gate driver stands out with its impressive specifications, including a peak output current of ±2.5 A, a guaranteed performance range from -40 to 110 ℃, and a versatile power supply voltage of 15 V to 30 V. With a low threshold input current of 6 mA and a supply current of 5 mA, it ensures efficient control and minimal energy consumption. The device's fast propagation delay time of 250 ns enhances signal transmission precision, while features like a 1.27 μs DESAT leading-edge blanking time and ±25 kV/μs common-mode transient immunity contribute to its reliability and safety. Additionally, the TLP5212 provides a secure galvanic isolation with an impressive 5000 Vrms isolation voltage. Overall, the TLP5212 excels as a high-performance and reliable gate driver for optocouplers across a range of applications.

product-1263-928

Related Products:

Mfr Part	TLP5212(E	TLP5212(TP,E	TLP5212(D4,E
Description	OPTOISO IGBT MOSFET DRIVER	OPTOISO IGBT MOSFET DRIVER	OPTOISO IGBT MOSFET DRIVER
Stock	50000	50000	50000
Product Status	Active	Active	Active
Technology	Optical Coupling	Optical Coupling	Optical Coupling
Number of Channels	1	1	1
Voltage - Isolation	5000Vrms	5000Vrms	5000Vrms
Common Mode Transient Immunity (Min)	25kV/us	25kV/us	25kV/us
Propagation Delay tpLH / tpHL (Max)	200ns, 200ns	200ns, 200ns	200ns, 200ns
Pulse Width Distortion (Max)	--	--	--
Current - Output High, Low	2.5A, 2.5A	2.5A, 2.5A	2.5A, 2.5A
Current - Peak Output	2.5A	2.5A	2.5A
Voltage - Forward (Vf) (Typ)	1.7V	1.7V	1.7V
Current - DC Forward (If) (Max)	25mA	25mA	25mA
Voltage - Output Supply	15V ~ 30V	15V ~ 30V	15V ~ 30V
Operating Temperature	-40°C ~ 110°C	-40°C ~ 110°C	-40°C ~ 110°C
Package / Case	WSOP16(7.5x1.27)	WSOP16(7.5x1.27)	WSOP16(7.5x1.27)
Package	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)

Applications：

• IGBT Gate Drivers

• MOSFET Gate Drivers

• Industrial Inverters

• AC Servos

• Photovoltaic (PV) Power Conditioning Systems

• Air Conditioner Inverters

General：

The TLP5212 is a highly integrated 2.5 A output current IGBT gate drive photocoupler housed in a long creepage and clearance SO16L package. The TLP5212, a smart gate driver photocoupler, includes functions of IGBT desaturation detection, isolated fault status feedback, soft gate turn-off, active Miller cramping and under voltage lockout (UVLO). The TLP5212 consists two infrared light-emitting diodes (LEDs) and two high-gain and high-speed Lightreceiving IC chips. They realize the control of output current and the feedback function of the fault signal with electrical isolation between a primary side and secondary side.
