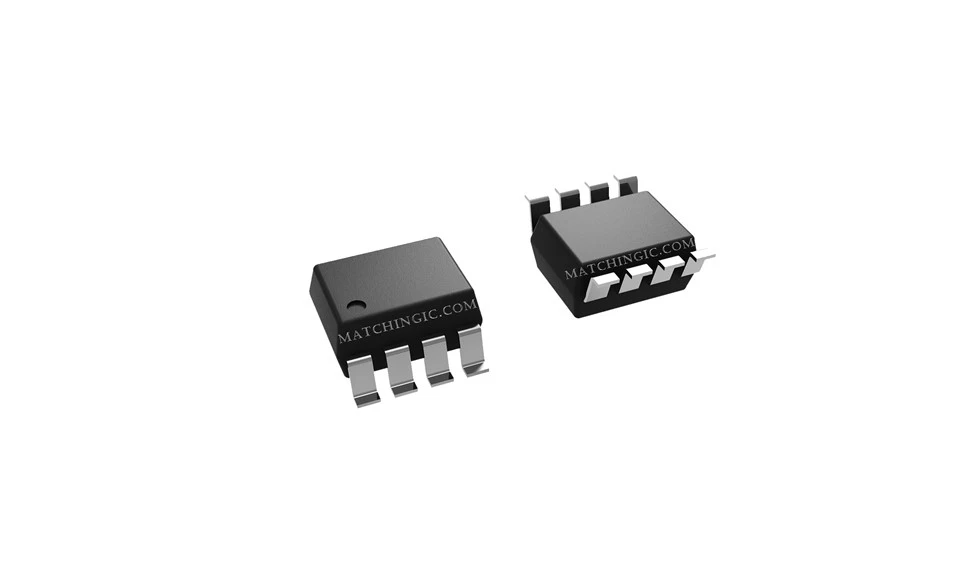

HI-4853PS

The HI-4853PS RS-485 transceiver stands as a robust and reliable solution for industrial communication. Its slew rate control, extended operating range, ESD protection, high data rate capabilities, and adherence to industry standards make it a versatile choice for diverse applications where stable and secure communication is paramount.

Send Inquiry

Add To Inquiry

Description

Technical Parameters

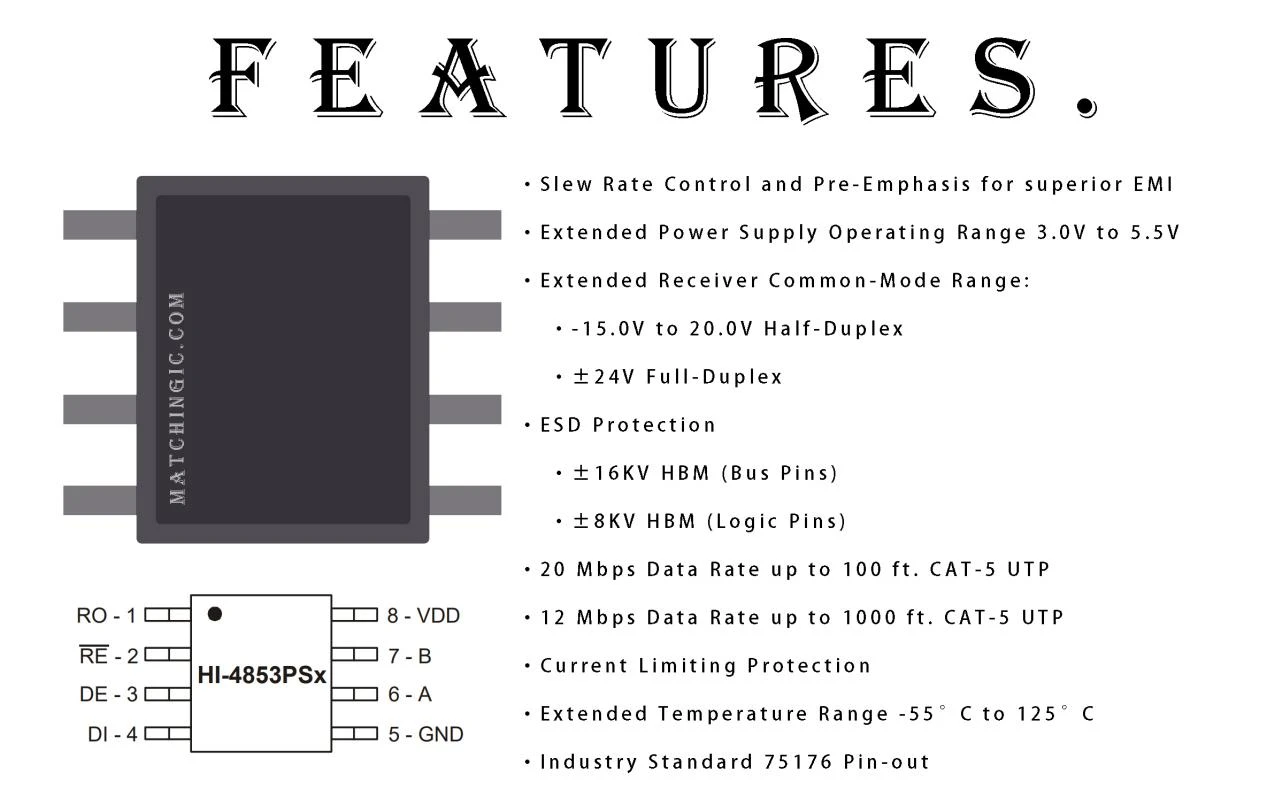

The HI-4853PS RS-485 transceiver is a robust and versatile solution for industrial communication, offering features such as slew rate control, pre-emphasis for superior EMI performance, and extended power supply operating range (3.0V to 5.5V). With a broad receiver common-mode range (-15.0V to 20.0V for half-duplex, ±24V for full-duplex), the device ensures reliable communication in challenging environments. ESD protection, including ±16KV HBM for bus pins and ±8KV HBM for logic pins, enhances durability. The transceiver supports high data rates (20 Mbps up to 100 ft., 12 Mbps up to 1000 ft. using CAT-5 UTP) and includes current limiting protection. Operating in an extended temperature range (-55°C to 125°C) and adhering to the industry-standard 75176 pin-out, the HI-4853PS is a dependable choice for diverse industrial applications.

product-1267-812

Related Products:

Mfr Part	HI-4853PSHF	HI-4853PSIF	HI-4853PSTF
Description	IC TRANSCEIVER RS485_422	IC TRANSCEIVER RS485_422	IC TRANSCEIVER RS485_422
Stock	40000	40000	40000
Product Status	Active	Active	Active
Type	Transceiver	Transceiver	Transceiver
Protocol	RS422, RS485	RS422, RS485	RS422, RS485
Number of Drivers/Receivers	1/1.	1/1.	1/1.
Duplex	Half	Half	Half
Receiver Hysteresis	28 mV	28 mV	28 mV
Data Rate	20Mbp	20Mbp	20Mbp
Voltage - Supply	3V ~ 5.5V	3V ~ 5.5V	3V ~ 5.5V
Operating Temperature	-55°C ~ 175°C	-40°C ~ 85°C	-55°C ~ 125°C
Package / Case	SOP8(3.9x1.27)	SOP8(3.9x1.27)	SOP8(3.9x1.27)
Package	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)

APPLICATIONS：

·Extended Temperature Range RS-485/422 Networks
·Process Control and Factory Automation
·EMI Emission Sensitive Avionics
·Industrial Field Bus Networks
·Networks requiring extended common-mode range

·Miniature Munitions Stores Interface (MMSI / EBR-1553)

GENERAL DESCRIPTION：

The HI-485x devices are high-speed slew-rated controlled TIA-485/TIA-422-B and ISO 8482:1993 compliant transceivers with extended receiver common-mode range for avionic and industrial control applications. The devices can operate over an extended supply (3.0V to 5.5V) and temperature (-55˚C to 125˚C) range. The receiver input common-mode range of [-15, 20]V and ±24V for the half and full duplex configurations respectively, is valid over the full supply and temperature specification. The HI-4853 has a halfduplex configuration, and the HI-4854 and HI-4855 are full-duplex. Slew rates are optimized for data rates below 25Mbps. The drivers slew-rate control and pre-emphasis reduces high-frequency components in the output signal transitions and also compensates for impedance mismatch. These features provide optimum EMI and jitter performance, essential in EMI sensitive environments and high-integrity data link applications such as in aerospace and industrial controls.

The devices deliver at least ± 1.50V (VDD=3.0V), and ± 2.45V (VDD= 4.5V) output levels at an extended temperature range of -55°C to +125°C into a differential load of 54Ω and 50pF.

The receiver offers true Fail-Safe operation, providing a guaranteed logic high on RO when the bus is open-circuit, shortcircuit, or idle (terminated but not driven). The receiver's worst case minimum input resistance is at least 90KΩ, supporting up to 224 nodes.
