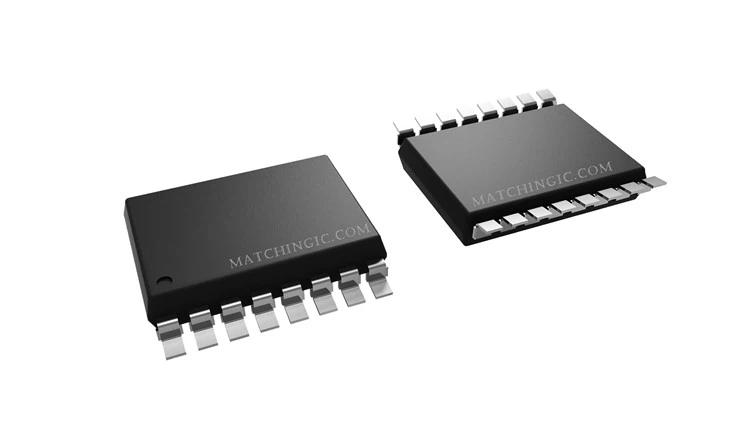

ADUM141E1WBRWZ-RL

The ADUM141E1WBRWZ-RL digital isolator is a reliable solution for a wide variety of industries and applications. Offers exceptional features such as high common-mode transient immunity (100 kV/μs), robust protection against radiated and conducted noise, low propagation delay (13 ns max at 5 V, 15 ns max at 1.8 V), and guaranteed maximum data The rate is 150Mbps, ensuring efficient and safe data transmission. Additionally, its low dynamic power consumption, compatibility with 1.8 V to 5 V level translation, high temperature operation up to 125°C, fail-safe high or low options, and compact 16-pin SOIC package make it a versatile and practical s Choice.

·General-purpose multichannel isolation

·Serial peripheral interface (SPI)/data converter isolation

·Industrial field bus isolation

The ADuM140D/ADuM140E/ADuM141D/ADuM141E/ ADuM142D/ADuM142E1 are quad-channel digital isolators based on Analog Devices, Inc., iCoupler® technology. Combining high speed, complementary metal-oxide semiconductor (CMOS) and monolithic air core transformer technology, these isolation components provide outstanding performance characteristics superior to alternatives such as optocoupler devices and other integrated couplers. The maximum propagation delay is 13 ns with a pulse width distortion of less than 3 ns at 5 V operation. Channel matching is tight at 3.0 ns maximum.

The ADuM140D/ADuM140E/ADuM141D/ADuM141E/ ADuM142D/ADuM142E data channels are independent and are available in a variety of configurations with a withstand voltage rating of 3.0 kV rms or 3.75 kV rms (see the Ordering Guide). The devices operate with the supply voltage on either side ranging from 1.8 V to 5 V, providing compatibility with lower voltage systems as well as enabling voltage translation functionality across the isolation barrier.

Unlike other optocoupler alternatives, dc correctness is ensured in the absence of input logic transitions. Two different fail-safe options are available, by which the outputs transition to a predetermined state when the input power supply is not applied or the inputs are disabled. The ADuM140E1/ADuM141E1/ADuM142E1 are pin-compatible with the ADuM1400/ADuM1401/ADuM1402.
